TOPS AND DOOR BARS 2,5 mm RAY
Quality and guarantee

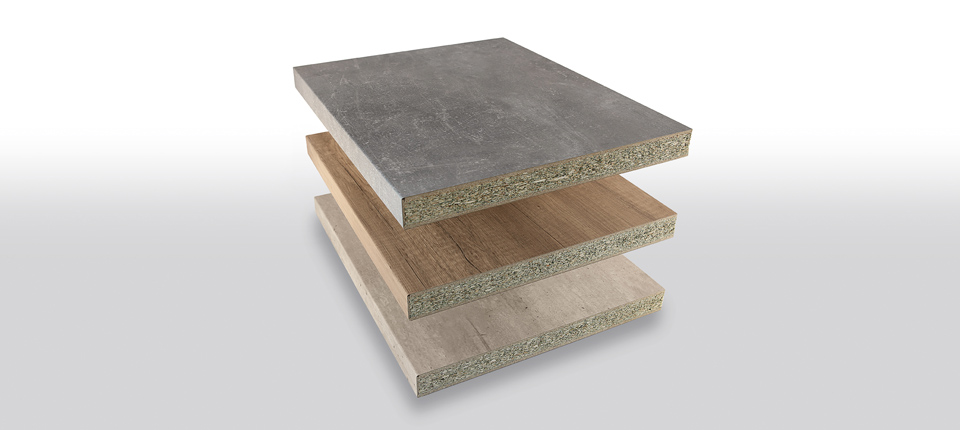

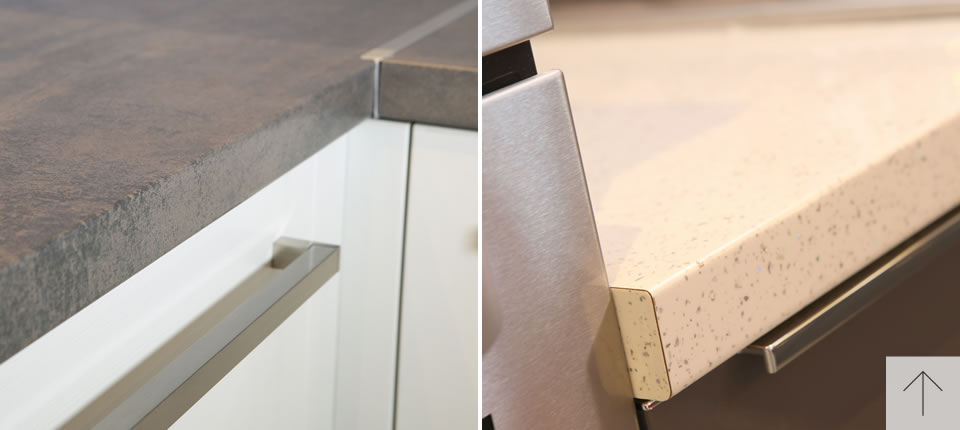

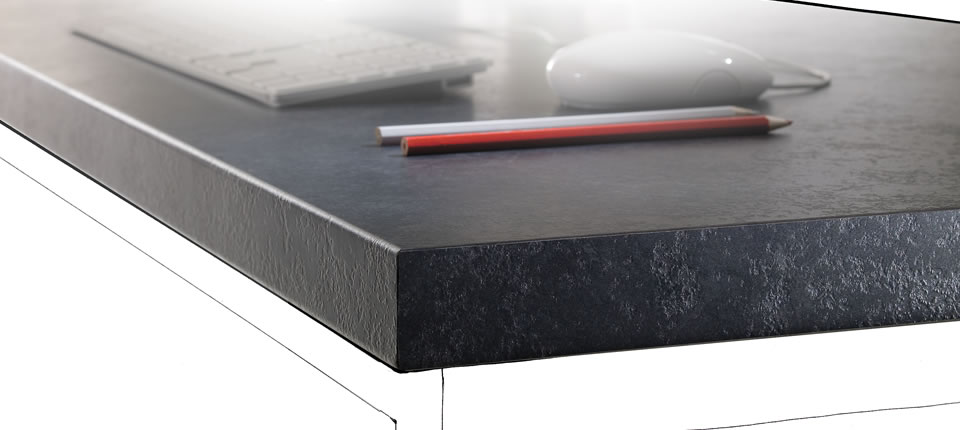

Thanks to advanced technologies and machinery, Mobiltre can realize its production of tops and door bars in order to meet 100% any specific request. We are skilled in producing kitchen tops, furniture elements, tops for bathrooms, doors, tables, shelves, worktops, benches. The supports employed for the production of our components are made of alveolar/paper, parquet wood, multilayer wood, compact HPL and waterproof and fire retardant chipboard panels.

DOWNLOAD FORM


These bars can be postformed or squared, they can be realized on different thicknesses, glued with polyurethane glues to prevent water and liquids absorbing, which can swell the wooden support.

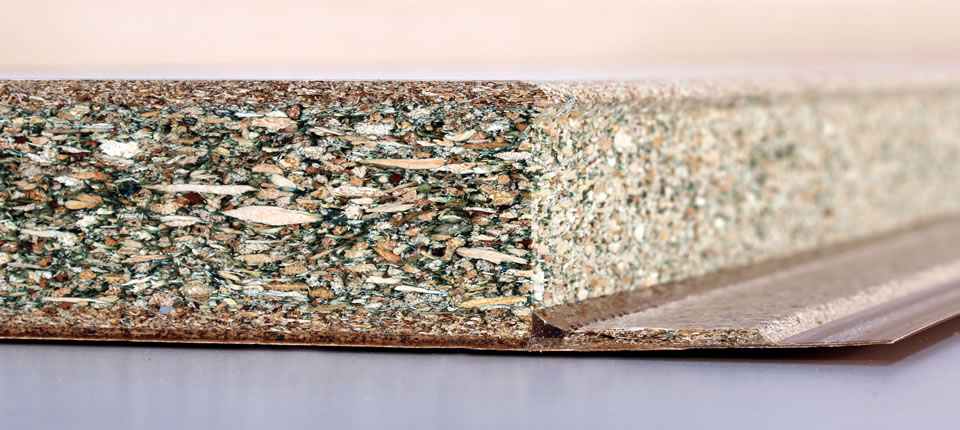

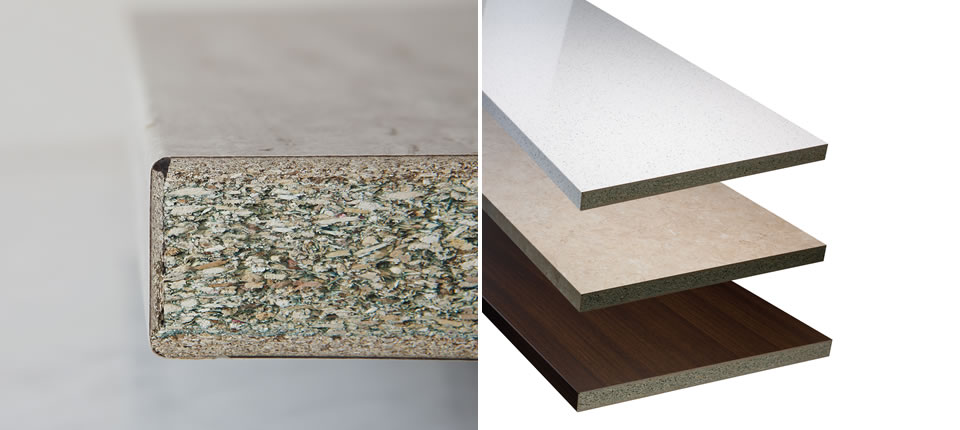

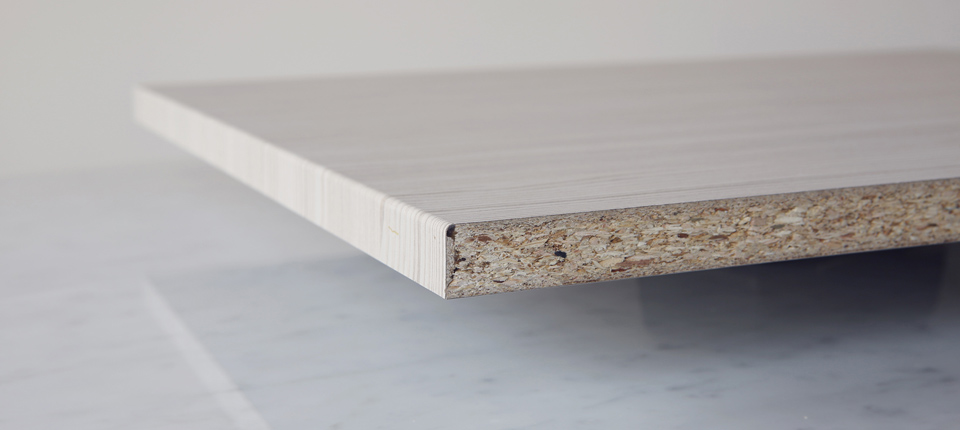

Postforming Profiles
TONDO
TOPS - POSTFORMING
RAGGIO
LUNGHEZZA
LARGHEZZA
SPESSORE
A




2,5
4200
600
28 + laminate
38 + laminate
+ other thicknesses
on demand
B




2,5
4
4200
600
28 + laminate
38 + laminate
Materials
- PANEL SUPPORTS
fire or water resistant chipboard
phenolic poplar multilayer
MDF
parquet wood panels






CHIPBOARD
Features
Rules / standards
Unit
Values V20
Values V100
Test
Thickness allowance
EN 312.1
mm
± 0,3
± 0,3
EN 312.1
Length/width allowance
EN 312.1
mm
± 0,5
± 0,5
EN 312.1
Squareness
EN 312.1
mm
2/1000
2/1000
EN 312.1
Humidity contents
EN 312.1
%
5-13
5-13
EN 322
Panel density change
EN 312.1
%
± 10
± 10
EN 322
Formaldehyde emission
(output punch value)
EN 312.1
mg/100g
< 8 (E1)
< 8 (E1)
EN 120
Thickness expansion
UNI 4866/61
DIN 68763/81
%
%
16
//
//
12
UNI 4872/61
(2h a 20 + 2°C)
DIN 52364/65
(24h a 20 + 2°C)
- COVERING MATERIALS
-laminate HPL thickness 0,6 to 1,2 mm
-laminate CPL thickness 0,4 to 0,6 mm






LAMINATE
Features
Rules/ standards
Units
Values HGP
Values VGP
Values HGS
Values VLS
Test
Resistance to Surface Wear
EN 438.1
Giri Taber
>=350
>=150
>=350
>=50
EN 438.2.6
Resistance to Shock
EN 438.1
N
>=20
>=15
>=20
>=15
EN 438.2.11
Resistance to Scratches
EN 438.1
N
>=2,0
>=1,75
>=2,0
>=1,5
EN 438.2.14
Resistance to Immersion
EN 438.1
(in acqua a 100° per 2 h) (in water at 100° for 2 h)
%
<=15
<=15
<=10
<=15
EN 438.2.7
Resistance to Smoke Burns
EN 438.1
Grade
>=3
//
>=3
//
EN 438.2.18
Resistance to Cracking
EN 438.1
Grade
>=4
>=4
>=4
>=4
EN 438.2.13
Resistance to Water Vapour
EN 438.1
Grade
>=3
>=3
>=4
>=3
EN 438.2.24
- GLUES
-vinyl glue
-polyurethane joint against water




Use
Nature
Features
Rules/ standards
U.M.
Values
Test
Flat Surfaces
Vinyl
Resistance to water
EN 204 D3
N/mm2
>=2
EN 205
Post forming
Vinyl
Resistance to water
EN 204 D3
N/mm2
>=2
EN 205
Edges
P.U.
Hot Melting
Resistance
to heat
Resistance to water
UNI 9242/87
under water for 6 hours
Evaluation / Observation
>=5(b)
Glued Joint Unchanged
()
